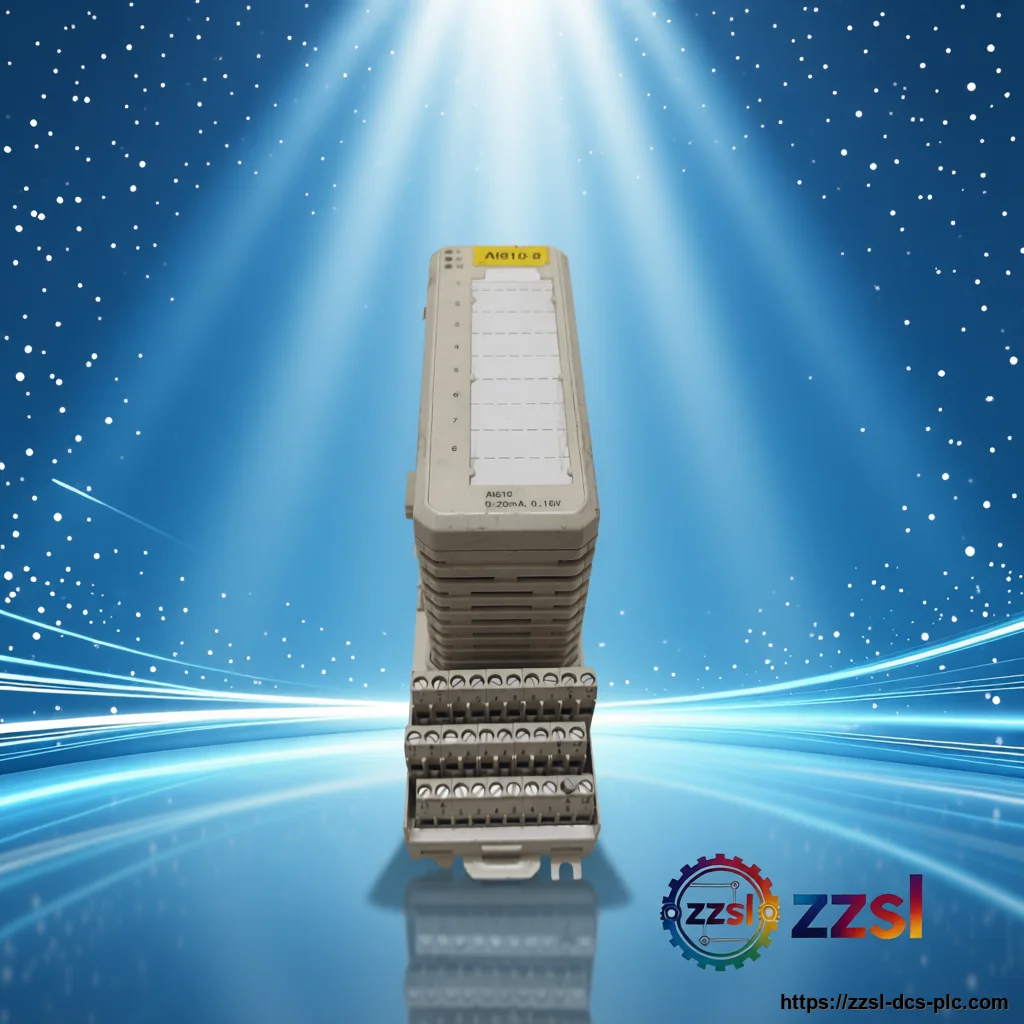

ABB Analog Input Module AI810
['Home', 'Industrial Automation Spare Parts', 'ABB', 'S800 I/O Modules'] Need ABB AI810? Analog Input Module for ABB S8…
Specifications
| Brand | ABB |
|---|---|
| Model Number | AI810 |
| Official Product Name | S800 I/O Analog Input Module |
| Applicable System | ABB S800 I/O (AC 800M / Freelance) |
| Product Type | Analog Input Module |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Channels | 8 AI, single group |
| Signal types | 0-20 mA, 4-20 mA, 0-10 V, 2-10 V |
| Resolution | 12 bit |
| Error | max 0.1% |
| Update cycle time | 8 ms |
| Dimensions (W x H x D) | 45 x 119 x 102 mm (S800 standard) |
| Weight | Contact supplier for exact specifications |
| Protection rating | IP20 |
| Article number | 3BSE008516R1 |
Product Description
Basic Product Information
- Supports 0-20 mA, 4-20 mA, 0-10 V and 2-10 V
- 12-bit resolution with HART transparency
- Groupwise isolation from ground
- 8 analog input channels (unipolar, single-ended)
Technical Specifications
Version & Model Difference
The AI810 is the standard 8-channel 12-bit analog input. Variants include AI815 (HART, transmitter supply), AI820/AI825 (bipolar differential, higher resolution) and AI830A (RTD). Contact supplier for the correct variant.
Application Scenarios
- Process variable measurement (pressure, flow, level)
- 4-20 mA transmitter interfacing with HART
- Distributed I/O in AC 800M and Freelance systems
- The AI810 input withstands HART communication on the 4-20 mA signal; for integrated HART pass-through use the AI815 variant.
