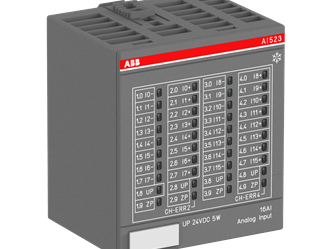

Data for ABB AI523 S500 Analog Input Module
ABB AI523 S500 Series Configurable Analog Input Module, Base Order Code: 1SAP250300R0001 Core Official Function AI523 is a compact 16-channel universal analog input module for ABB AC500 PLC S500 I/O system, designed to collect multi-type field sensor signals and convert analog measurements into digital data for the PLC CPUABB Group. Core Official Function AI523 is a compact 16-channel universal analog input module for ABB AC500 PLC S500 I/O system, designed to collect multi-type field sensor signals and convert analog measurements into digital data for the PLC CPUABB Group. Supports multi-signal types: voltage (±10 V, 0–10 V), current (0–20 mA, 4–20 mA), Pt100 RTD temperature sensors (2/3-wire), and digital contact input via software channel configuration. 13-bit high-resolution A/D conver
Product Description
ABB AI523 S500 Series Configurable Analog Input Module, Base Order Code: 1SAP250300R0001 Core Official Function AI523 is a compact 16-channel universal analog input module for ABB AC500 PLC S500 I/O system, designed to collect multi-type field sensor signals and convert analog measurements into digital data for the PLC CPUABB Group. Core Official Function AI523 is a compact 16-channel universal analog input module for ABB AC500 PLC S500 I/O system, designed to collect multi-type field sensor signals and convert analog measurements into digital data for the PLC CPUABB Group. Supports multi-signal types: voltage (±10 V, 0–10 V), current (0–20 mA, 4–20 mA), Pt100 RTD temperature sensors (2/3-wire), and digital contact input via software channel configuration. 13-bit high-resolution A/D conver
Technical Specifications
| Brand | ABB |
|---|---|
| Model | AI523 |
| Category | Industrial Automation |
| Supports multi-signal types | voltage (±10 V, 0–10 V), current (0–20 mA, 4–20 mA), Pt100 RTD temperature sensors (2/3-wire), and digital contact input via software channel configuration. |
| Price range | USD 240 – 450 per piece |
| ABB AC500 CPU series | PM554, PM564, PM573, PM583, PM590 all standard and XC rugged controller variants |
| Remote bus interface modules | DC551-CS31 (CS31 bus), DC505-FBP (fieldbus remote I/O) |
| Independent LED per channel | green = active measurement, red = channel fault (short/open circuit). |
| Origin | Germany / Original |
| Condition | New Original Factory Sealed |
| Warranty | 12 Months |
| Shipping | Global Delivery via DHL/FedEx/UPS |
