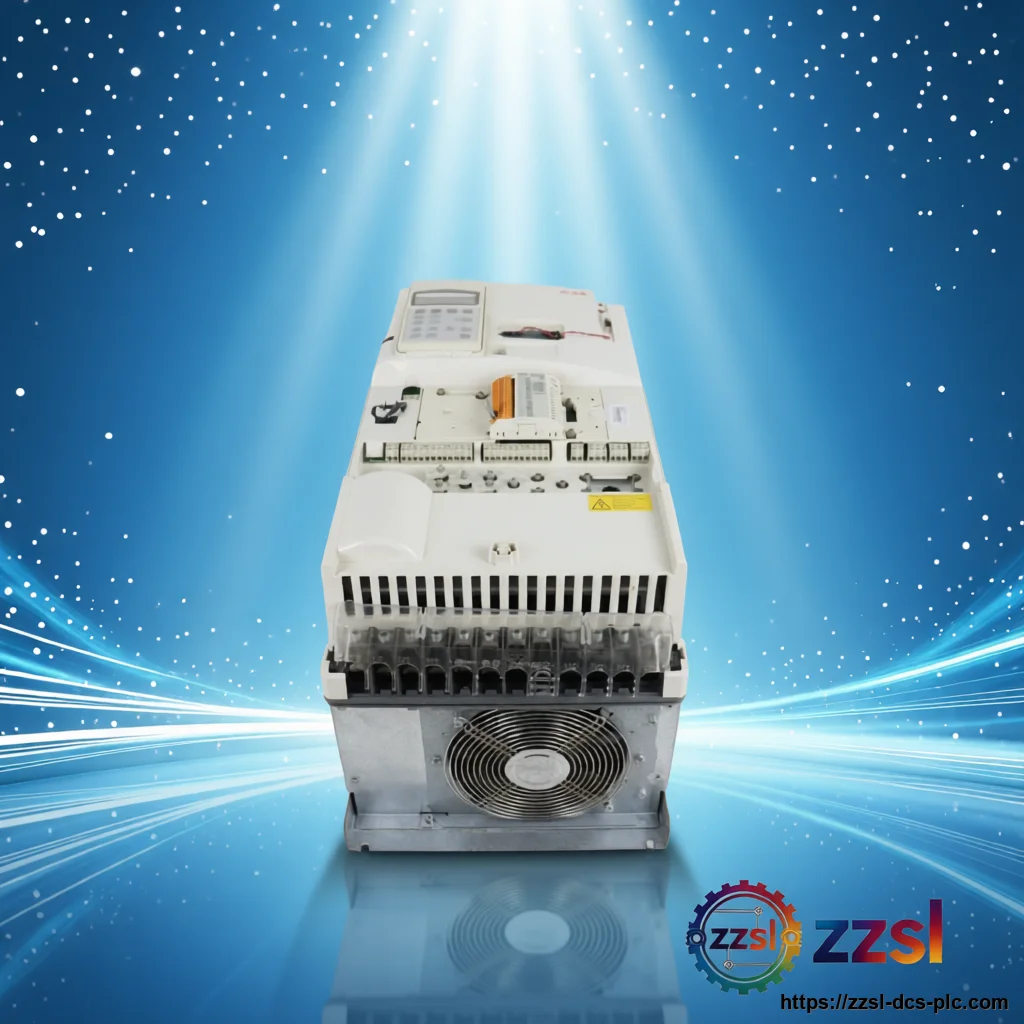

ACS800-04-0060-3

Product Description

This module is part of ABB's ACS800 family, known for its robust performance and advanced control capabilities. The ACS800-04-0060-3 operates on a 3-phase input voltage of 380-480 V AC and delivers a rated current of 60 A, making it suitable for motors with a power rating of approximately 30 kW (40 HP) at 400 V. It features ABB's Direct Torque Control (DTC) technology, which provides accurate torque and speed control without the need for encoder feedback, ensuring high dynamic performance and energy efficiency. The ACS800-04-0060-3 is a chassis-type drive module, designed for integration into control cabinets or as part of a larger drive system. It includes a built-in DC bus, allowing for common DC bus configurations in multi-drive systems. The module supports a wide range of optional modules and fieldbus adapters, enabling seamless integration into various automation networks such as PROFIBUS, DeviceNet, and Ethernet. Its compact design and IP00 protection rating make it ideal for industrial environments where space is at a premium and cooling is provided by the surrounding enclosure. This drive module is widely used in industries such as material handling, mining, metals, and chemical processing, where reliable and precise motor control is critical. The ACS800-04-0060-3 is designed to meet international standards including CE, UL, and cUL, ensuring compliance with global safety and performance requirements. With its advanced features and proven reliability, the ABB ACS800-04-0060-3 is a trusted solution for demanding industrial applications. The ABB ACS800-04-0060-3 is a drive module from the ACS800 series, designed for industrial applications requiring precise motor control.

Basic Product Information

• Rated current of 60 A and power up to 30 kW at 400 V
• Wide input voltage range: 380-480 V AC, 3-phase
• Built-in DC bus for common DC bus configurations
• Supports multiple fieldbus adapters (PROFIBUS, DeviceNet, Ethernet)
• Compact chassis design with IP00 protection for cabinet installation
• Direct Torque Control (DTC) for precise motor control

Technical Specifications

Version & Model Difference

The ACS800-04-0060-3 is part of the ACS800 series, which includes various frame sizes and current ratings. Compared to smaller modules like the ACS800-04-0016-3 (16 A) or larger ones like the ACS800-04-0100-3 (100 A), the 0060-3 model offers a mid-range power level. It is also available in different voltage versions (e.g., -2 for 208-240 V, -3 for 380-480 V, -5 for 500-600 V). The ACS800 series has been largely superseded by the ACS880 series, but the ACS800-04 modules remain popular for replacement and expansion of existing installations.

Application Scenarios
