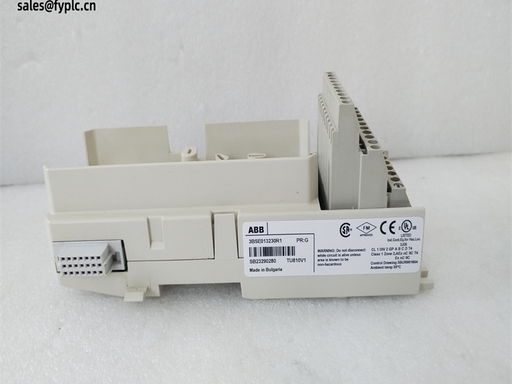

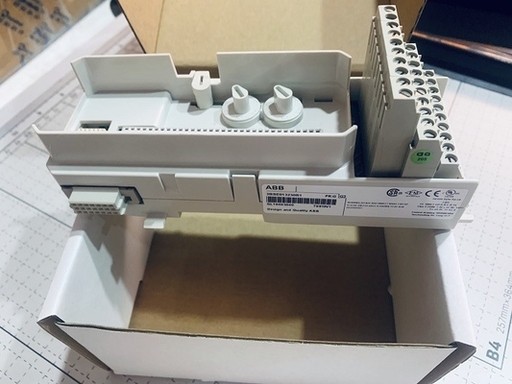

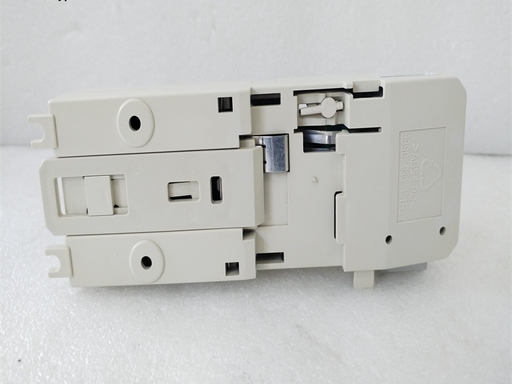

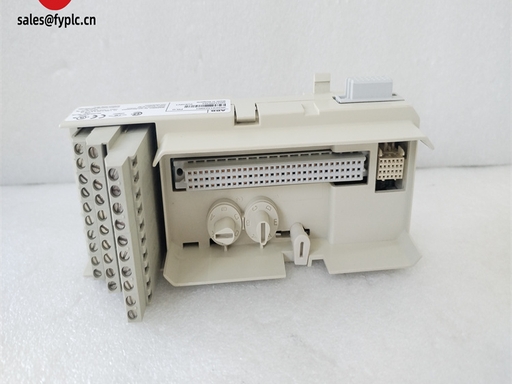

ABB TU810V1 Compact Module Termination Unit (3BSE013230R1, S800 I/O MTU)
ABB
3BSE013230R1
Physical wiring interface between S800 I/O core modules and field sensors/actuators with 16 screw terminals. Distributes ModuleBus communication between stacked termination units. Provides automatic address shifting for downstream I/O modules. Supports hot-swap of I/O modules without rewiring.
Specifications
| Full Model | 3BSE013230R1 (TU810V1) |
|---|---|
| Type | S800 I/O MTU |

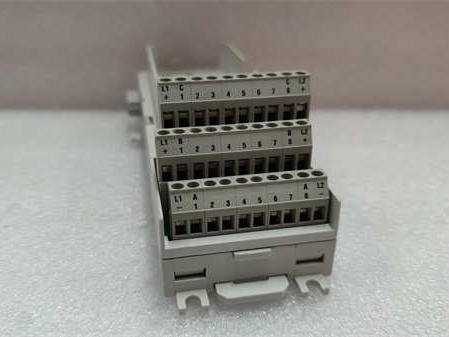

| Terminals | 16 screw terminals |
| Isolation | 50V rated |
| Features | Hot-swap, auto addressing, ModuleBus distribution |
Product Description
Physical wiring interface between S800 I/O core modules and field sensors/actuators with 16 screw terminals. Distributes ModuleBus communication between stacked termination units. Provides automatic address shifting for downstream I/O modules. Supports hot-swap of I/O modules without rewiring.
